BL-VMC Video Media Converter

Brellet Telecom’s BL-VMC series of video media converters are based on SOC advanced digital signal processing technology and provides customers with a high-quality solution for transmission of uncompressed digital video. This series of converters can also transmit audio, data, telephone, Ethernet and On/Off signals over a single optical fiber. The optical and electrical interfaces of this series of converters follow international standards and are applicable in different types of working environment.

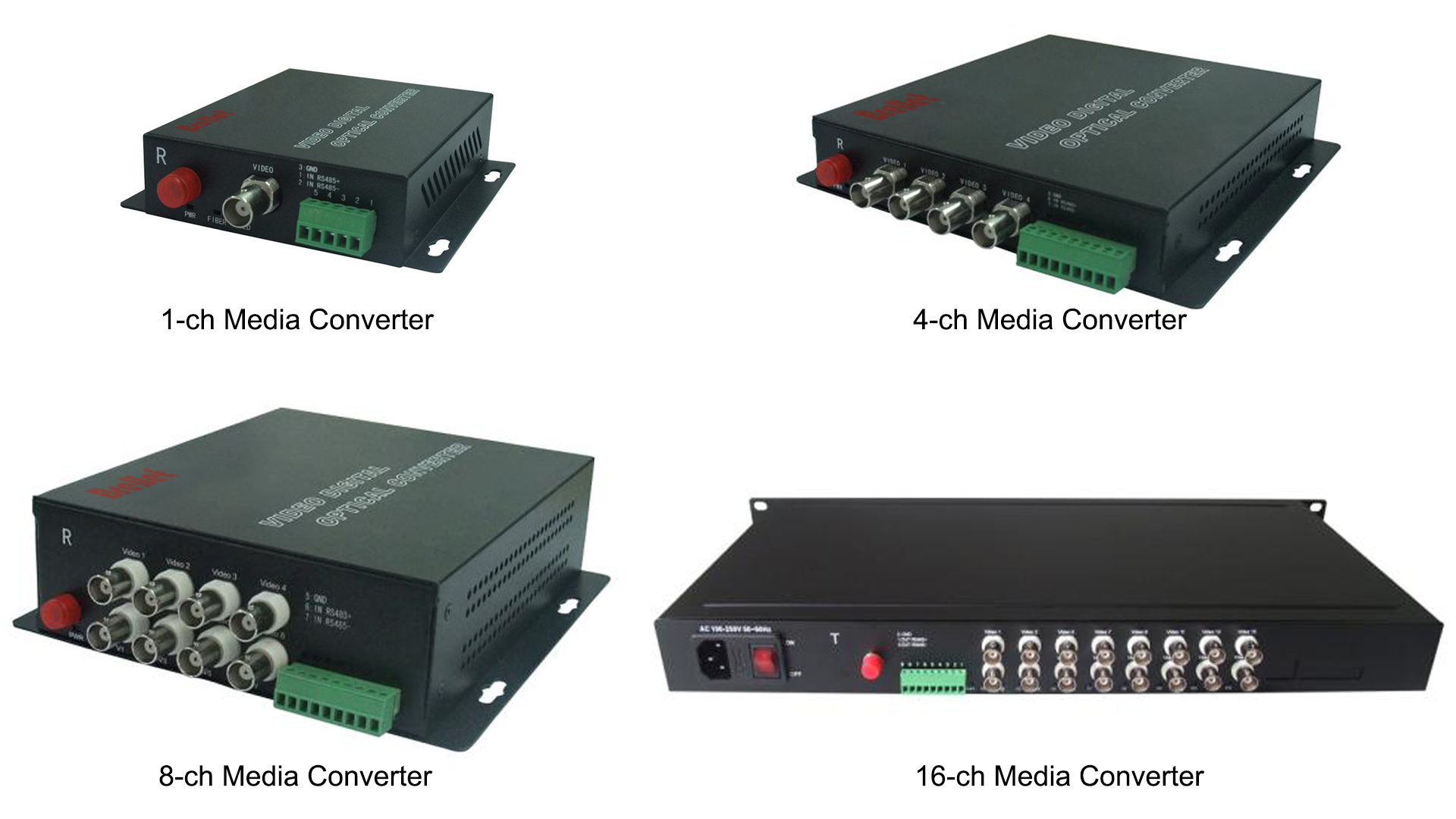

Pictures





Features
  • Hot-swappable function
  • No setting and easy operation
  • Any high-resolution video signal
  • No-damage regenerative trunk of video
  • Auto-compatible PAL, NTSC and SECAM video system
  • Point to point connection and no decrement in the value of SNR

Applications
  • Telecom Network
  • CCTV Surveillance
  • CATV System

Product Video
Specifications
Parameters Specification
Optical Interface FC, ST, SC, SFP optional
Transmission Distance (km) MM: 0~2
SM: 0~80
Wavelength (nm) MM: 1310/1550
SM: 1310/1550
Video Interface BNC
Number of Videos 1/4/8/16
Input /Output Impedance (Ω) 75 (imbalanced)
SNR (Weighted) (dB) ≥67
Bandwidth (Hz) 8
Auto-compatible Video System PAL, SECAM, NTSC
Differential Gain (10%-90%APL) <1% (Typical)
Differential Phase (10%-90%APL) <0.6° (Typical)
Field Oblique Ratio (%) <5
Audio Interface Screw terminal block
Input /Output Impedance (Ω) 600 (Balanced/Unbalanced)
Input /Output Voltage (Vp-p) 2 (Typical)
Input /Output Level (dBm) 0 (Typical)
Frequency Response (KHz) 10~20
Encoding/Decoding (Bit) 24
SNR (Weighted) (dB) ≥95
Data Interface Screw terminal block
Signal RS485/RS422/RS232/Manchester
Bit Rate (Kbps) 0~400
Error Rate <10-9
Phone Interface RJ11
Audio Bandwidth (KHz) 8
Operation Mode P2P hotline mode /FXS-FXO
Ethernet Interface RJ45
Support Mode Half duplex or Full duplex
Standards IEEE802.3 10/100M adaptive
General Material of Body Iron (1 channel)
AL (4/8/16 channel)
Working Temperature (°C) 0~+60
Storage Temperature (°C) -40~+85
Working Humidity (%) 0~5, non-condensing
Operating Voltage (V) AC: 110V, 220V
DC: 5, 9, 24V (optional)
MTBF (hours) >100,000
