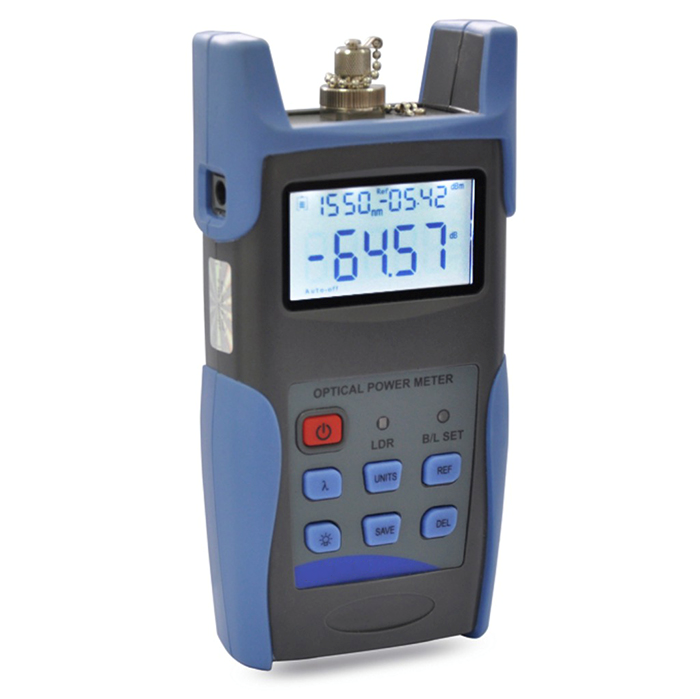

BL-OPM300-H Optical Power Meter

Brellet Telecom’s BL-OPM300-H series of handheld optical power meter provides testing for 6 output wavelengths with REF setting function (Reference power level storage). This series has intelligent backlight control (light intensity can be adjusted properly according to ambient light, which greatly reduces power consumption) function and USB storage transfer. It can identify the wavelengths and frequencies automatically (used with BL-OLS300-H series of light source) and is a good testing solution for the fiber optic network together with a light source.






Features
  • Supports 6 wavelengths
  • User self-calibration function
  • Power measurements in dBm or mW
  • Auto power off after 10 minutes without operation
  • Standard FC/SC/ST interchangeable port
  • Backlight LCD display for night operation
  • REF setting function
  • Intelligent backlight control
  • Auto wavelength and frequency identification
  • High storage capacity
  • USB communication port for data transfer
  • Easy to operate, flexible and convenient
  • Long working hours

Applications
  • Telecommunication networks
  • CATV networks
  • Other fiber optic networks
  • Education and research in optical communication

Specifications
Parameters Specification
Model BL-OPM300-T-H BL-OPM300-C-H
Wavelengths (nm) 800~1700
Calibrated Wavelengths (nm) 850/1300/1310/1490/1550/1625
Detector Type InGaAs
Optical Interface FC/SC/ST interchangeable port
Measurement Range (dBm) -70~+6 -50~+26
Uncertainty (dB) ±0.15(3.5%)
Linearity (dB) ±0.02
Display Resolution (dB) 0.01
Frequency ID (Hz) 270/330/1K/2K
Wavelengths ID (nm) 1310/1490/1550/1625
Data Storage Capacity (Set) 1000
Communication Port USB
Auto Power off Time (min) 10
Power Supply Alkaline Battery(3 AA 1.5V batteries)
Battery Operation Time (Hours)1 200
Operation Temperature (°C) -10~+60
Storage Temperature (°C) -25~+70
Dimensions (mm) 175(L) x 90(W) x 45(H)
Weight (g) 255(without battery)
Note: 1. Battery working time is the working time when the backlight is off and the battery working time will be relatively shortened when the backlight is continuously on.


Standard Accessories
No. Product Unit Quantity
1 Optical Power Meter Host Set 1
2 FC Adapter Piece 1
3 SC Adapter Piece 1
4 ST Adapter Piece 1
5 AA 1.5V Battery Piece 3
6 Power Adapter Piece 1
7 Soft Bag Piece 1
8 USB Line Piece 1
9 USB Disk (User's manual) Piece 1


Ordering Information
Part number Product name Description
BL-OPM300-T-H Optical Power Meter Handheld, 850/1300/1310/1490/1550/1625nm; Measurement range: -70~+6dBm; FC/SC/ST interchangeable port
BL-OPM300-C-H Optical Power Meter Handheld, 850/1300/1310/1490/1550/1625nm; Measurement range: -50~+26dBm; FC/SC/ST interchangeable port
