BL-FOSC-Y9601S Fiber Optic Splice Closure

BL-FOSC-Y9601S Fiber Optic Splice Closure

Type：Fiber Optic Splice Closure

Contact Us

Tel：+86 21 57722935

Skype：+86 17612180002

Whatsapp：+86 17612180002

Commissioner：Amy

View More Fiber Optic Splice Closures

  • Description
  • Parameter
BL-FOSC-Y9601S Fiber Optic Splice Closure

Brellet Telecom's BL-FOSC-Y9601S series are dome mechanical sealing fiber optic splice closures which can be used for the protection of various straight-through and branching optical cable. This kind of splice closures are sealed with the screws so that people can fix and seal the optical cable by screwing the screws of inlets and outlets. The mechanical sealing fiber optic splice closures can be used for directly buried, manholes, pole mounting, wall mounting and overhead installation.

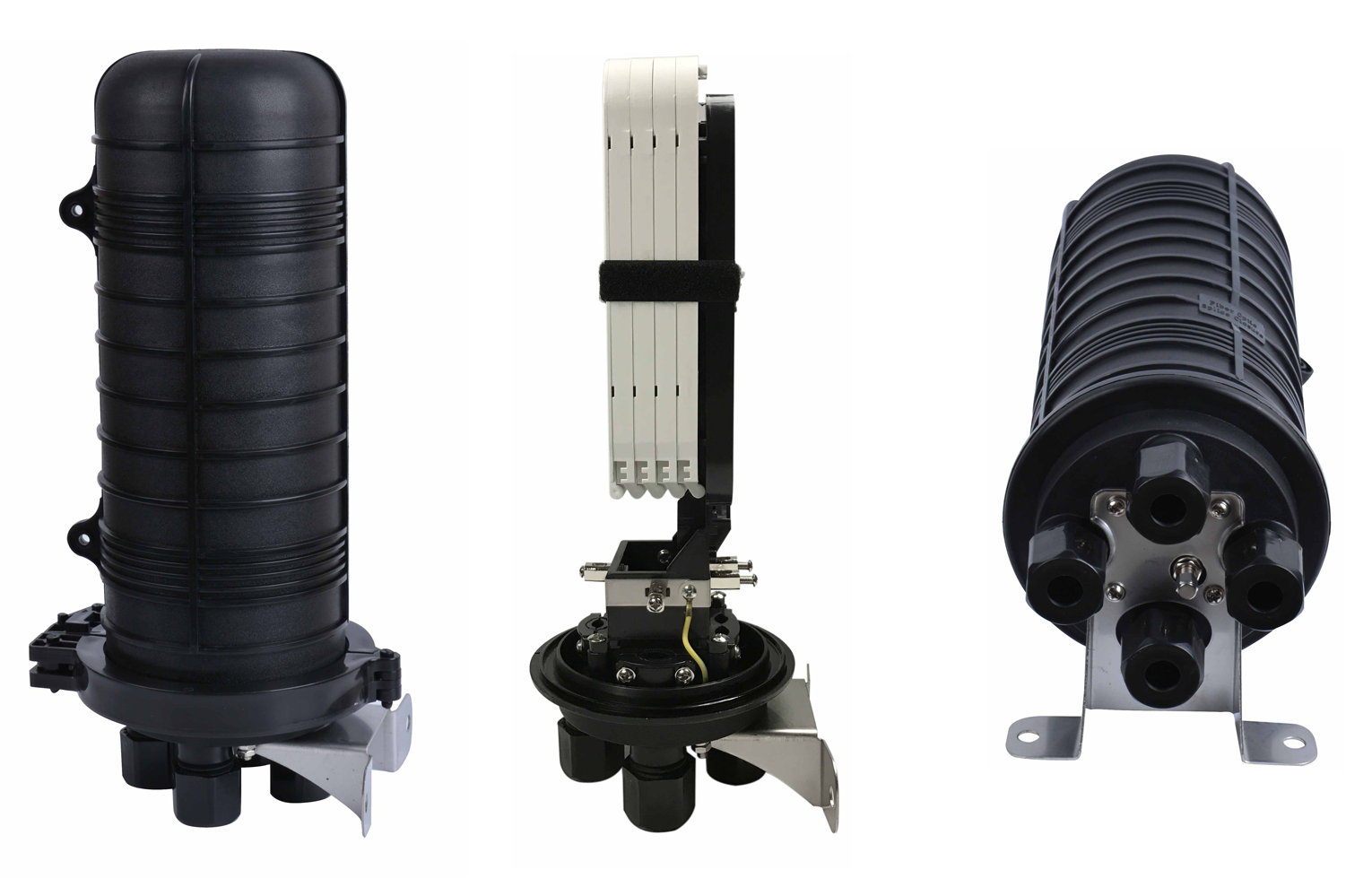

Pictures


Features
  • Advanced internal structure design
  • Protection rating IP68
  • Usable for multiple number of times
  • Long lasting body with high-strength PC plastic material
  • Easy to re-enter, it never requires re-entry tool
  • The closure is spacious enough for winding and storing fibers
  • The curved diameter meets with international standard

Applications
  • Optical Network
  • CATV Networks
  • Telecom Network
  • CCTV Surveillance
  • LAN System

Specifications
Parameters Specification
Max. Capacity of Fibers 96
No. of Fibers/Tray 24
No. of Inlets and Outlets 2+2
Cable Diameter (mm) 2 holes: 8 ~15
2 holes: 8 ~ 15
Material PC, PC+ABS, PP
Color Black
Sealing Method for Inlets Mechanical Sealing
Protection Rating IP68
Dimensions (mm) 405 (H) x 135 (D)


Structural Drawing

Standard Package
No. Name Unit Quantity
1 Fiber Optic Splice Closure Set 1
2 Sealing Tape Piece 1
3 Insulation Tape Piece 1
4 Emery Cloth Piece 1
5 Ties Pieces 4×no. of trays
6 Protective Sleeves Pieces According to no. of fibers
7 Numbering Paper Piece According to no. of fibers
8 Desiccant Piece 1


Optional Accessories
No. Name Unit Quantity
1 Earthing Deriving Device Set 1
2 Protection Tube Piece 1
3 Valve Piece 1
4 Wall Mounting Set 1
5 Aerial Mounting Set 1


Ordering Information
Part Number Product Name Description
BL-FOSC-Y9601S-24 Fiber Optic Splice Closure Dome type, mechanical sealing, 24 fibers, 1 tray of 24 fibers included, 4 cable ports, IP68, material: PP; Dimensions (mm): 405 (H) ×135(D).
BL-FOSC-Y9601S-48 Fiber Optic Splice Closure Dome type, mechanical sealing, 48 fibers, 2 trays of 24 fibers included, 4 cable ports, IP68, material: PP; Dimensions (mm): 405 (H) ×135(D).
BL-FOSC-Y9601S-72 Fiber Optic Splice Closure Dome type, mechanical sealing, 72 fibers, 3 trays of 24 fibers included, 4 cable ports, IP68, material: PP; Dimensions (mm): 405 (H) ×135(D).
BL-FOSC-Y9601S-96 Fiber Optic Splice Closure Dome type, mechanical sealing, 96 fibers, 4 trays of 24 fibers included, 4 cable ports, IP68, material: PP; Dimensions (mm): 405 (H) ×135(D).
