Stranded Loose Tube Light-armored (Steel Tape) Cable (GYTS)
GYTS construction is that 250um fibers are positioned in a loose tube which is made of high modulus plastic and filled with a water-resistant filling compound; A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member; Tubes are stranded around the strength member into a compact and circular cable core; The PSP (Steel Tape) is longitudinally applied over the cable core which is filled with the filling compound to protect it from water ingress; The cable is completed with a polyethylene (PE) sheath.

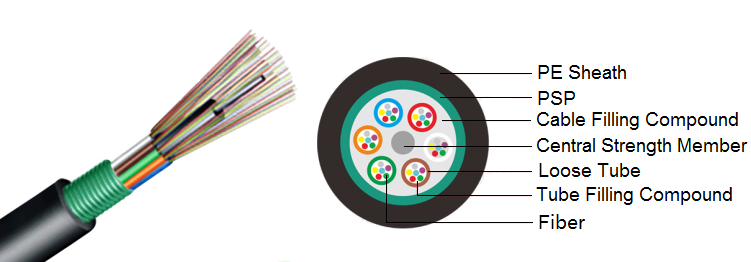

Cable Structure
Features
-
Good mechanical and temperature performance
-
High hydrolysis resistance and high strength loose tube
-
Good crush resistance and flexibility
-
High tensile strength ensured by steel wire
-
Good moisture-proof ensured by PSP
-
PE sheath protects cable from ultraviolet radiation
Application
-
Long-distance communication and interoffice communication
Laying Method
