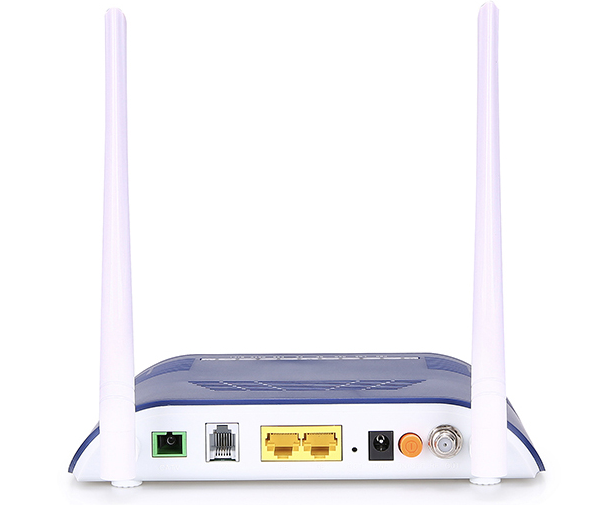

BL-GE61G1F1P-CW EPON ONU

BL-GE61G1F1P-CW is 1GE+1FE+1POTS+WIFI+CATV EPON HGU ONU. It is designed for meeting the multi-service needs of fixed network operators or cable operators, and widely used in FTTO, FTTD, FTTH broadband access and CATV, video surveillance and other requirements. It is based on mature Gigabit EPON technology and has high cost performance, good stability, high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees. It is fully compliant with EPON technical regulations such as ITU-T G.984.x, IEEE802.3ah and technical requirement of EPON Equipment from China Telecom. Small size dual mode ONU can automatically detect OLT and switch PON mode. It can be used as EPON and can also be applied to a wide temperature environment and also has a firewall function.






Features
  • HGU ONU, bridging and routing modes can be set.
  • Compatible with popular EPON OLT.
  • Support loop detection, IGMP and IGMP snooping.
  • 802.1Q VLAN, QinQ, Cos, DSCP, QoS for priority of service.
  • Support port speed and storm suppression.
  • WiFi supports 802.11n 2T2R with the speed up to 300Mbps.
  • Support No-auth, WEP, WPA-PSK and WPA2-PSK.
  • Triple Solution Data, Voip and Cable TV (RF bandwidth:45~1000MHz; AGC function).
  • Support NAT and Firewall function.
  • Support remote software upgrade.
  • Support Telnet, CLI, OMCI/OAM and Web management.

Applications
  • FTTH
  • FTTD
  • CATV
  • Operators' front-end Network Coverage
  • Private Network Construction
  • CCTV Surveillance
  • Enterprise Campus Network Access
Specifications
Parameters Specification
PON
PON Interface 1 x SC/UPC optical port
Wavelength TX 1310nm/RX 1490nm
Speed Rate Uplink: 1.25Gbps
Downlink: 1.25Gbps
Optical Output Power 0~+4dBm
Receiving Sensitivity ≤-28dBm
Max Transmission Distance 20km
Ethernet Interface 1 x 10/100/1000M RJ45 port; 1 x 10/100M RJ45 port
Telephone 1 x FXS, RJ11 port
Wireless Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R 2 external antenna
Operation Temperature -5~+55℃
Storage Temperature -30~+60℃
Humidity 10~90%(No condensation)
Power Supply External power adapter: AC100~240V to DC12V 1A
Power Consumption ≤10W
Dimensions 185mm(L)×122mm(W)×33mm(H)
Weight 320g
CATV
Input Optical Power Range -18~+2dBm
Optical Connector Type SC/APC
Optical Return Loss ≥45dB
Wavelength 1550 ±10nm
RF Output Connector Imperial or metric
RF Bandwidth 47~1000MHz
Slope 0~2 dB(47~1003MHz)
RF Impedance 75Ω
RF Output Return Loss ≥14 dB
RF Output Lever 76±2 dBuV(-15~0dBm)
AGC Range 0 ~ -15 dBm
C/N ≥47 dB (-7dBm)
CTB ≥60 dB (-7dBm)
CSO ≥60 dB (-7dBm)
MER ≥35 dB

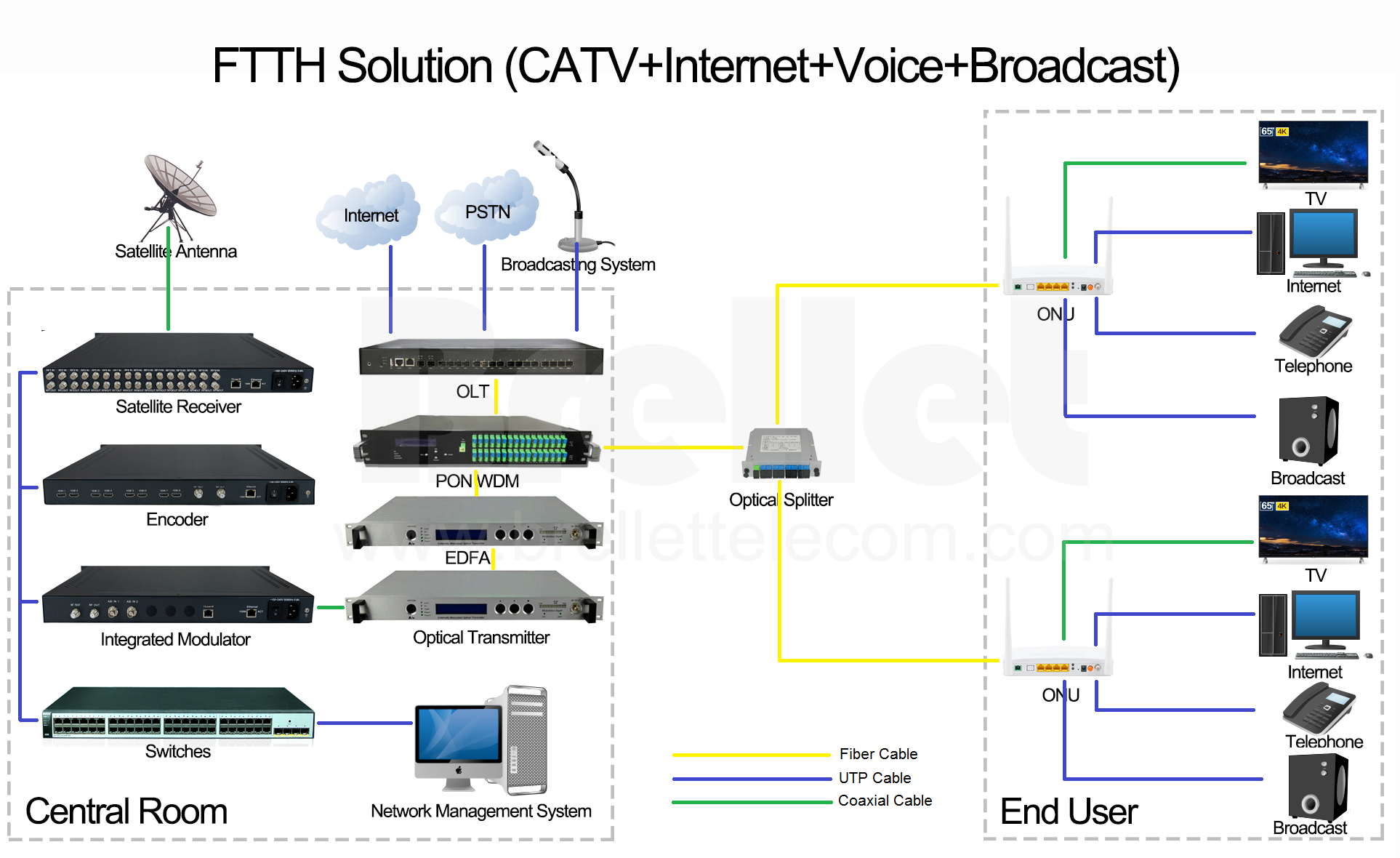

Application Topology



Ordering Information
Part Number Product Name Description
BL-GE61G1F1P-CW Optical Network Unit (ONU) EPON; 1*SC/APC optical port, 1*10/100/1000M RJ45 port; 1*10/100M RJ45 port; 1 POTS RJ11 port; With 2.4G WIFI and CATV function, External power adapter: AC100-240V to DC12V.
