Cable Terminal Equipment

BL-OTB-H2SC Fiber Optic Terminal Box

BL-OTB-H2SC Fiber Optic Terminal Box

Type:Fiber Optic Terminal Box

Contact Us

Tel:+86 21 57722935

Skype:+86 17612180002

Whatsapp:+86 17612180002

Commissioner:Amy


  • Description
  • Parameter
BL-OTB-H2SC Fiber Optic Terminal Box

Brellet Telecom's Fiber Optic Terminal Box is light and compact, especially suitable for protective connection of fiber cables and pigtails in FTTx projects.

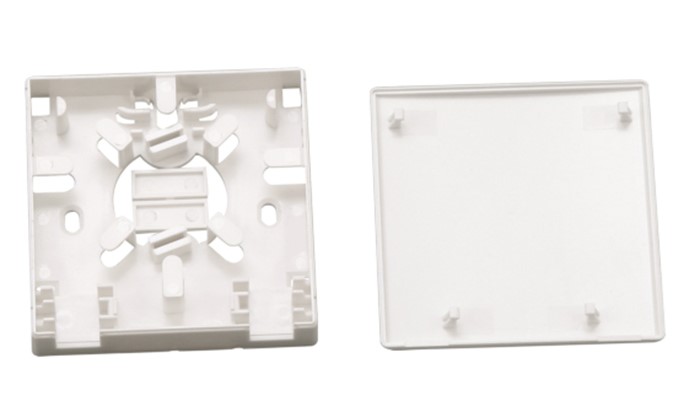

Pictures



Features
  • PC+ABS material, light weight and durable
  • Wall mount
  • Suitable for use in indoor environments
  • Easy to open and close, easy to install

Application
  • Telecommunication networks
  • FTTH access networks
  • Local area networks
  • CATV networks


Specifications
Parameters Specification
Max. No. of Adapters 2
Adapter Type SC, DLC (SC type)
Material PC+ABS
Color White, gray and black can be optional
Installation Wall mounted
Operating Temperature (℃) -40~+60
Storage Temperature (℃) -25~+55
Relative Humidity ≤95%
Atmospheric Pressure (KPa) 62~101
Dimensions (mm) 86*86*23
Weight (kg) 0.06

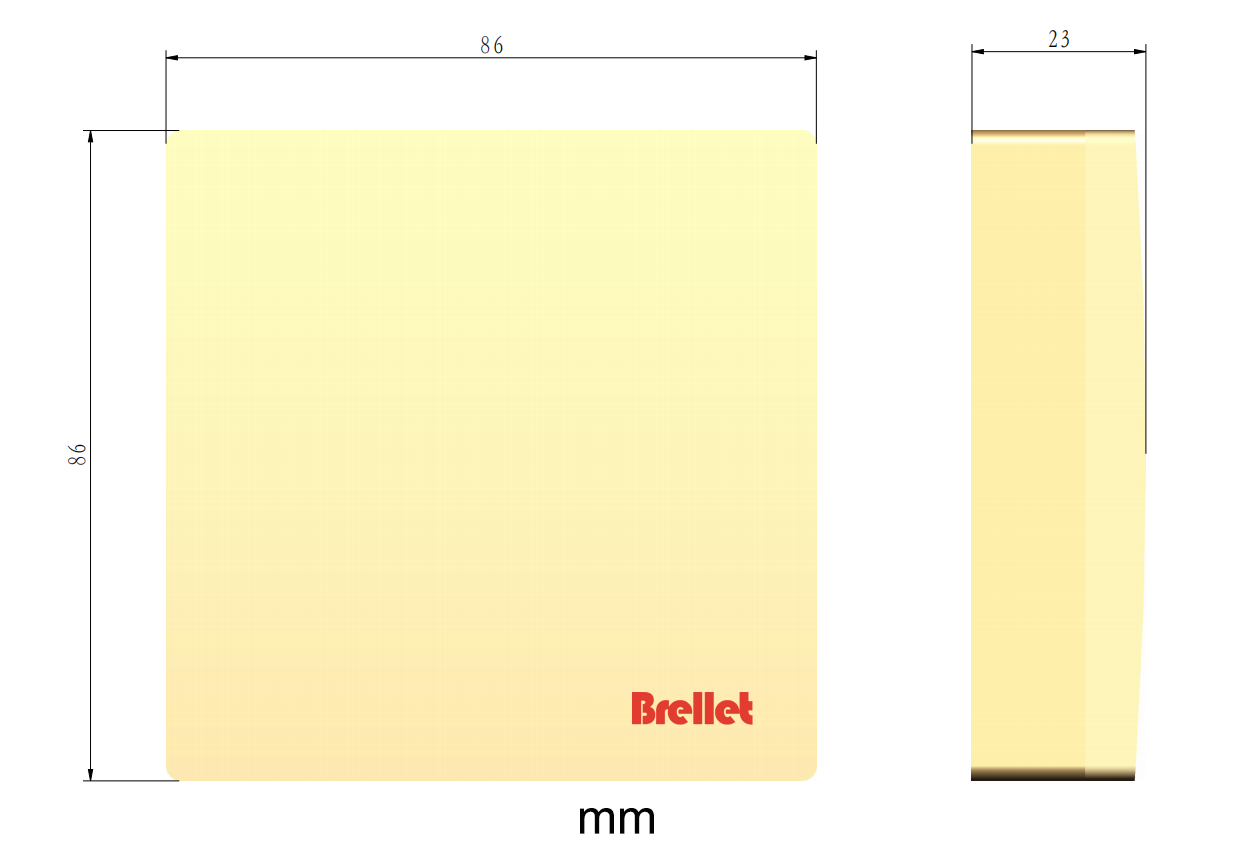

Dimensions

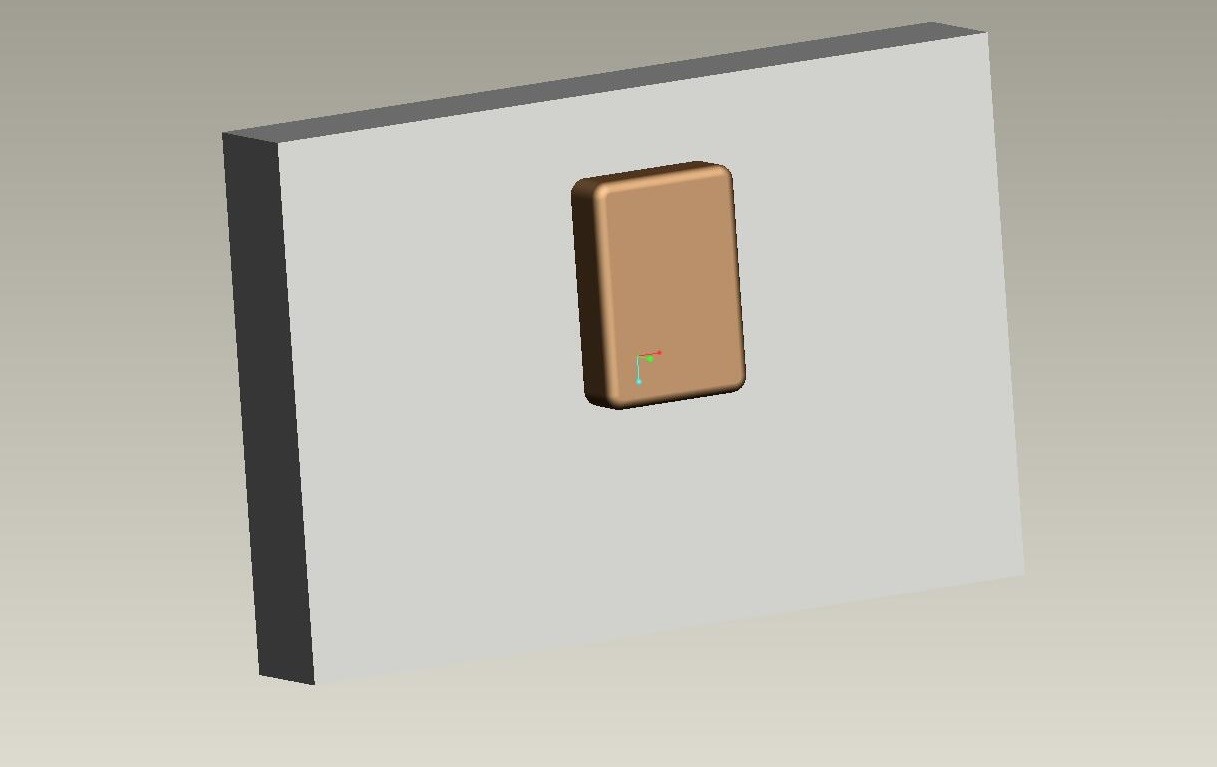

Installation Method

Wall-mounted installation



Ordering Information

Part Number Product Name Description
BL-OTB-H2SC Fiber Optic Terminal Box White, material: PC+ABS; Suitable for 2 pieces of SC or duplex LC (SC type) adapters, adapters and pigtails not included; Dimensions: 86*86*23mm.
