BL-OTB-4SC Fiber Optic Terminal Box

BL-OTB-4SC Fiber Optic Terminal Box

Type:Fiber Optic Terminal Box

Contact Us

Tel:+86 21 57722935

Skype:+86 17612180002

Whatsapp:+86 17612180002

Commissioner:Amy


  • Description
  • Parameter

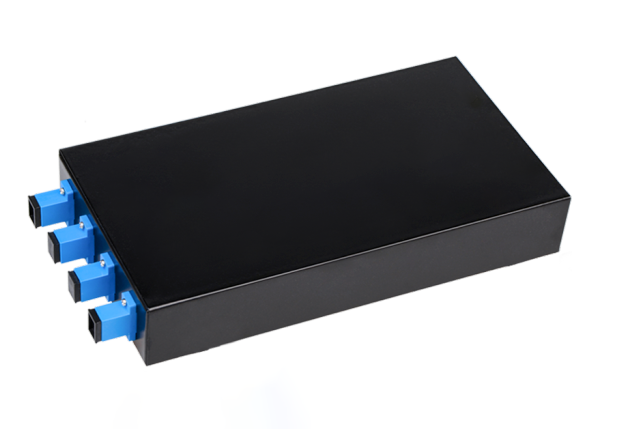

BL-OTB-4SC Fiber Optic Terminal Box

Brellet Telecom’s BL-OTB-4SC fiber optic terminal box is widely used for fiber optic cable fixation, protection, termination, patching etc. to achieve the connection between fiber optic cable and equipment.


Features
  • Indoor wall mount
  • FC square/SC/ST adapter panel

Application
  • Telecommunication networks
  • FTTH access networks
  • Local area networks
  • CATV networks

Specifications
Parameters Specification
Max. No. of Adapters 4
Adapter Type FC square, SC, DLC (SC type), ST
No. of Input and Output Ports 2 in 4 out
Max. Cable Diameter (mm) 20
Material Cold-rolled steel
Color Gray and black can be optional
Installation Wall mounted
Operating Temperature (℃) -40~+60
Storage Temperature (℃) -25~+55
Relative Humidity ≤95%
Atmospheric Pressure (KPa) 62~101
Dimensions (mm) 200(L)*120(W)*35(H)
Weight (kg) 0.45
