BL-ODB-H16B Fiber Optic Distribution Box

BL-ODB-H16B fiber optic distribution box allows the installation of PLC splitters and is especially suitable for PON projects. It is made out of high strength engineering plastics with compacted size and light weight.

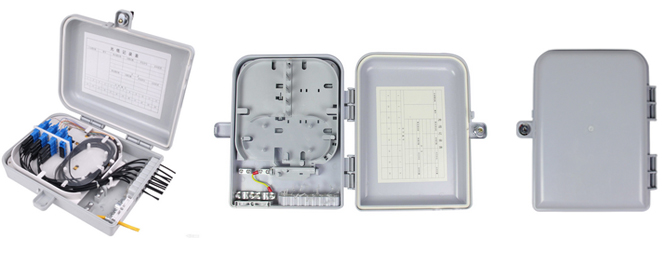

Pictures

Features

Protection rate IP65
Anti-UV , impact resistant and rainfall resistant
Wall or pole mount
Indoor or outdoor use
Fast connector applicable
Suitable for one 1x 8 or 1 x 16 PLC splitter

Application

Telecommunication networks
FTTH access networks
Local Area Networks
CATV networks

Specifications

Parameters	Specification
Max. No. of Adapters	16
Adaptor Type	SC, DLC (SC type)
Splitter Type	Blockless PLC splitter
No. of Inlet and Outlet Ports	2 in 16 out
Protection Rate	IP65
Material	PC+ABS
Installation	Wall/Pole/Aerial mounted
Dimensions (mm)	32027090mm
Weight (kg)	1.245

Installation Method

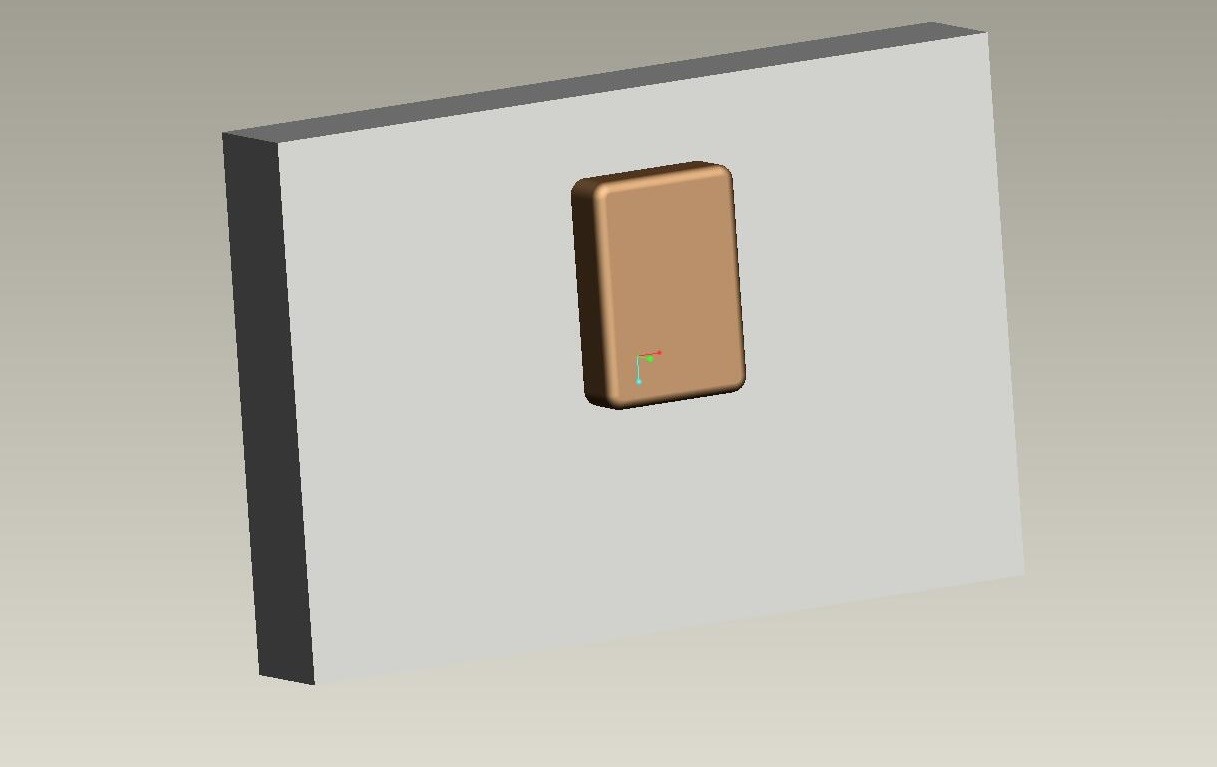

1. Wall-mounted installation

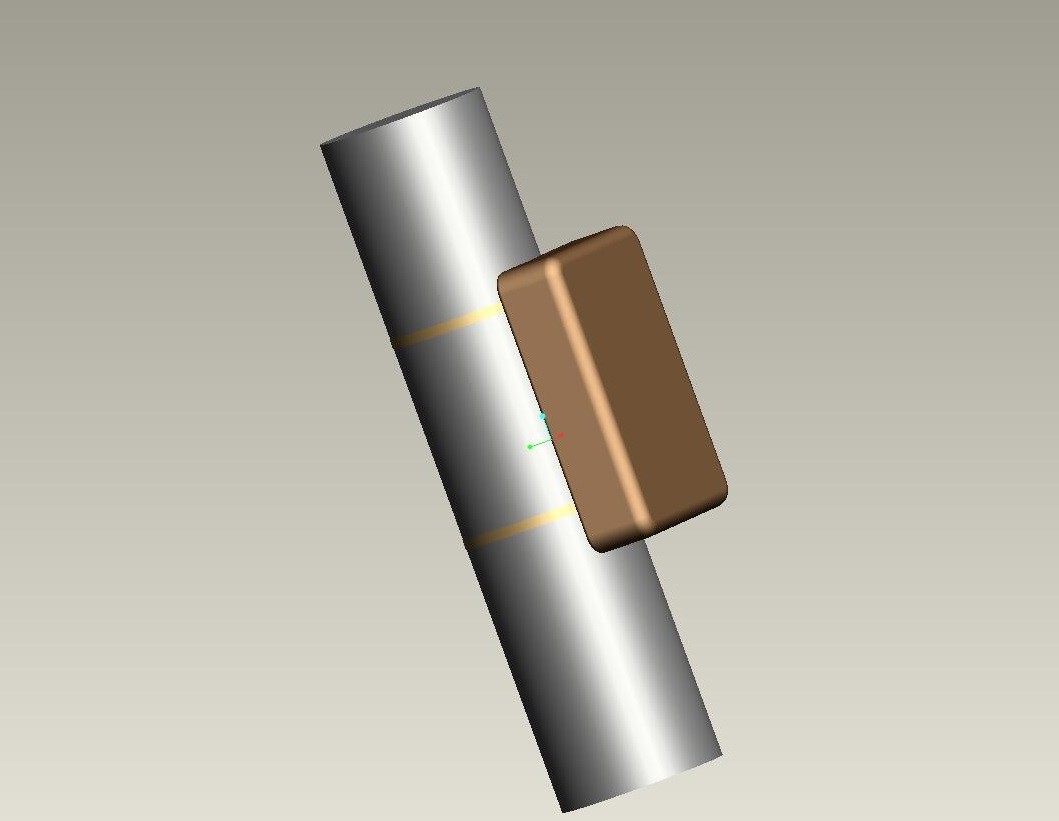

2. Pole-mounted installation

Ordering Information

Part Number	Product Name	Description
BL-ODB-H16B-P	Fiber Optic Distribution Box	Gray; Suitable for 1 piece of 1x16 (or 1 piece of 1x8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Splitter and adapters NOT included；2 cable input ports, 16 cable output ports; Material: PC+ABS; Dimensions: 320 (L) x 270 (W) x 90 (H) mm; Pole mounting accessories included
BL-ODB-H16B-W	Fiber Optic Distribution Box	Gray; Suitable for 1 piece of 1x16 (or 1 piece of 1x8) blockless type PLC splitter; With the adaptor panel for max. 16 pieces of SC or duplex LC (SC type); Splitter and adapters NOT included；2 cable input ports, 16 cable output ports; Material: PC+ABS; Dimensions: 320 (L) x 270 (W) x 90 (H) mm; Wall mounting accessories included
